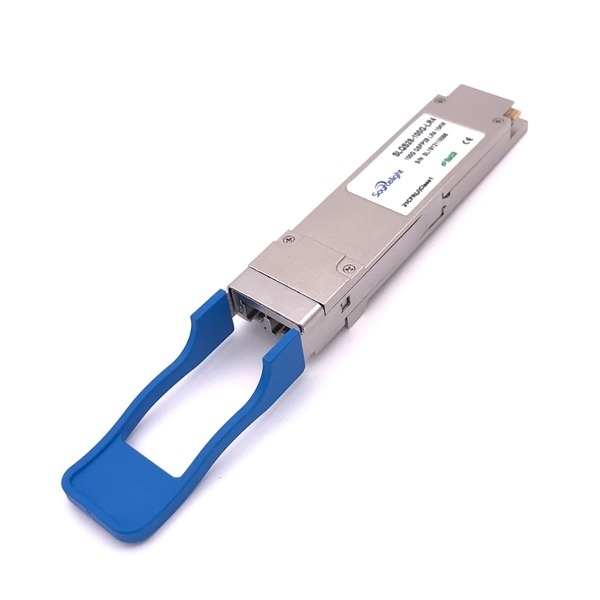

100G QSFP28 FR Single Lambda
100G QSFP28 FR Single Lambda
  • 100G QSFP28 FR Single Lambda
  • Item : SLQS28-100G-FRS
  • NameValue
    Product DescriptionQSFP28 FR Single Lambda
    Data Rate100Gbit/s
    Reach2km
    TxEML
    RxPIN
    ConnectorDuplex LC SM
  • SLQS28-100G-FRS is designed for 2km optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP.

    The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 4.5W.

    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
Parameter
Application
  • QSFP28 MSA compliant
  • Compliant to 100G Lambda MSA 100G-FR
  • Supports 53.125Gbaud
  • 4x25G electrical interface (OIF CEI-28GVSR)
  • Up to 2km transmission on single mode fiber (SMF) with FEC
  • Maximum power consumption 4.5W
  • Duplex LC receptacle
  • RoHS compliant
Package (Form Factor) QSFP28 FR Single Lambda
Data Rate (typical) 25.78 Gbps/CH
Centre Wavelength 1310nm
Distance 2km on SMF
Diagnostics Digital Monitor
Transmitter EML
Receiver PIN
TX Output Power (dBm) -2.9~+4
Minimum RX Power(dBm) -6.4
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC
  • 100G Ethernet
  • Data Center Interconnect
  • Enterprise networking
