| Name | Value |
| Package | CSFP |
| Data Rate(G) | 2.5G |
| Wavelength | Tx1490/Rx1310 |
| Connector | Duplex LC |
| Reach | 20km |
| Temp | 0-70 |
| DDM | YES |
| Fiber Type | SMF |

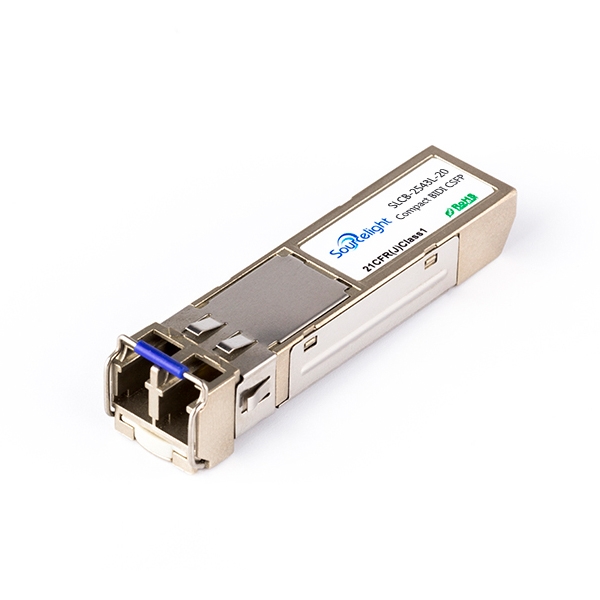

The CSFP transceivers are high performance, cost effective modules supporting 2.488Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Package (Form Factor) | Compact SFP |
| Data Rate (typical) | 2.5 Gb/s |
| Centre Wavelength | Tx1490nm/Rx1310nm |
| Distance | 20km |
| Diagnostics | Digital Monitor |
| Transmitter | DFB Laser |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -5~0 |
| RX Sensitivity (dBm) | -19 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |
