| Name | Value |
| Product Description | QSFP+ AOC |
| Data Rate | 56Gbit/s |
| Reach | 1~100m |
| Tx | 850nm VCSEL |
| Rx | PIN |
| Fiber Cable | OM3/OM4 MM |

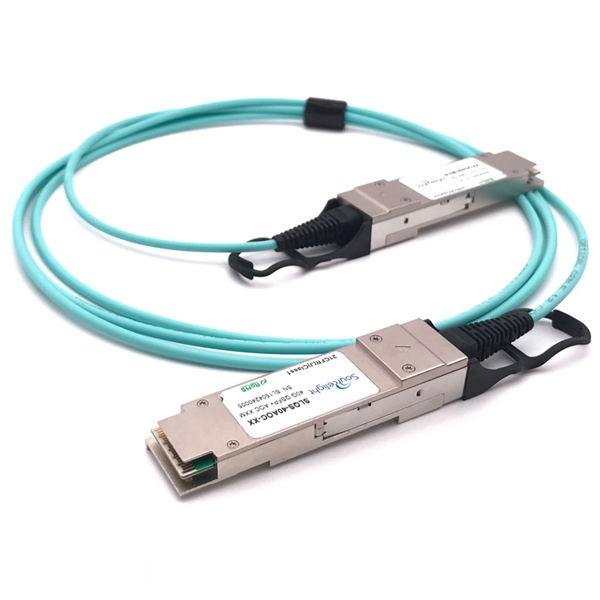

56G QSFP AOC active optic cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand FDR/QDR/DDR/SDR,16G/10G/8G/4G/2G fiber channel , PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.
Sourcelight 56G QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14.025Gb/s, providing an aggregated rate of 56Gb/s.
| Package (Form Factor) | QSFP+ AOC |
| Data Rate (typical) | 14.025Gbps/CH |
| Distance | 100m on OM3 MMF |
| Transmitter | 4CH VCSEL Array Laser |
| Receiver | 4CH PIN photo detector Array |
| TX Output Power (dBm) | -7.5~+2.5 |
| RX Sensitivity (dBm) | -5.4 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | QSFP+ |
