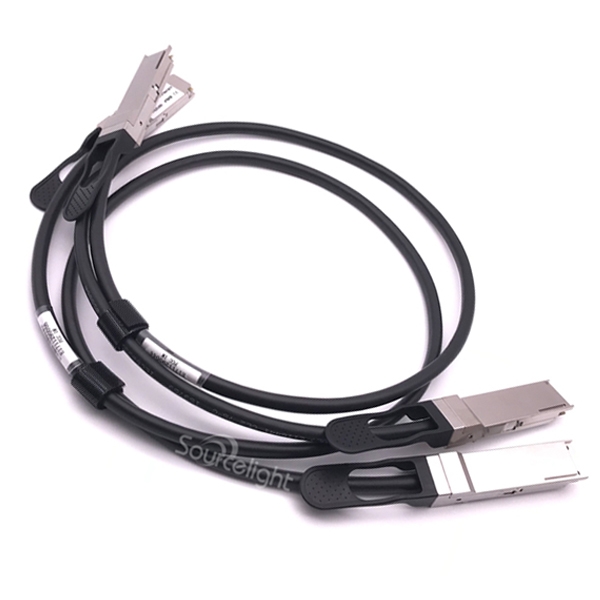

40G QSFP+ ACTIVE CABLE

40G QSFP+ ACTIVE CABLE
Item : SLQS-40AC-XX
Name Value

Product Description QSFP+ DAC Active
Data Rate 40Gbit/s
Reach 1~10m
Tx --
Rx --
Fiber Cable Copper Cable
The QSFP+ cable assemblies are high performance, cost effective I/O solutions for LAN,HPC and SAN. The high speed cable assemblies meet and exceed Gigabit Ethernet, InfiniBand and Fiber Channel commercial temperature requirements for performance and reliability.

The cables are compliant with InfiniBand Architecture, SFF-8436 specifications and provide connectivity between devices using QSFP ports.

QSFP+ conforms to the Small Form Factor SFF8436
4-Channel Full-Duplex Active Copper Cable Transceiver
Support for multi-gigabit data rates :1GGb/s - 10Gb/s (per channel)
Maximum aggregate data rate: 40Gb/s (4 x 10Gb/s)
Copper link length up to 10m (active limiting)
High-Density QSFP 38-PIN Connector
Power Supply :+3.3V
Low crosstalk
I2C based two-wire serial interface for EEPROM signature which can be customized
Temperature Range: 0~ 70 °C
ROHS Compatible
