Name | Value |
Product Description | QSFP+ LR4 |
Data Rate | 40Gbit/s |
Reach | 10km |
Tx | 1271~1331nm CWDM DFB |
Rx | PIN |
Connector | Duplex LC SM |

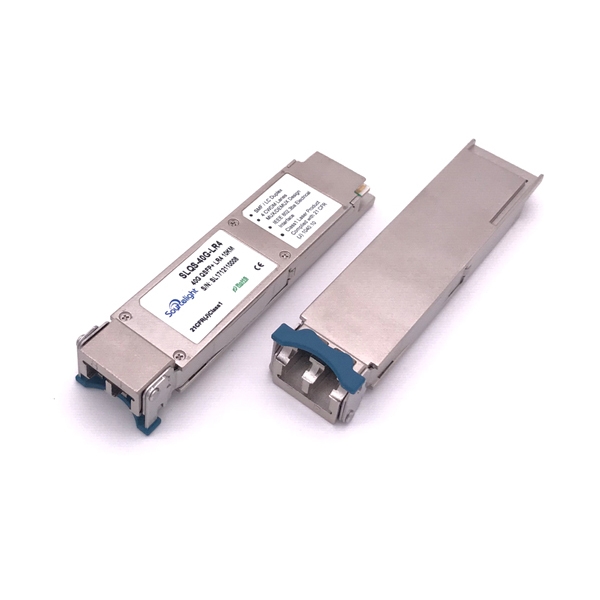

The SLQS-40G-LR4 is a 4x10G hot pluggable optical transceiver. The sourcelight technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 40Gbps data link in a compact QSFP footprint.
The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-LR transceiver is designed for applications based on the IEEE 802.3ba 40BASE-LR4 standard of up to 10km reach.
Package (Form Factor) | QSFP+ |
Data Rate (typical) | 10.3 Gbps/CH |
Centre Wavelength | 1270/1290/1310/1330nm |
Distance | 10km |
Diagnostics | Digital Monitor |
Transmitter | 4 CWDM un-cooled DFB Laser |
Receiver | 4CH PIN photo detector Array |
TX Output Power (dBm) | -7~+2.3 |
RX Sensitivity (dBm) | -11.5 |
Low/High Case Temperature | 0°C~70°C |
Voltage Supply (typical) | 3.3v |
Connector | Duplex LC/UPC |
